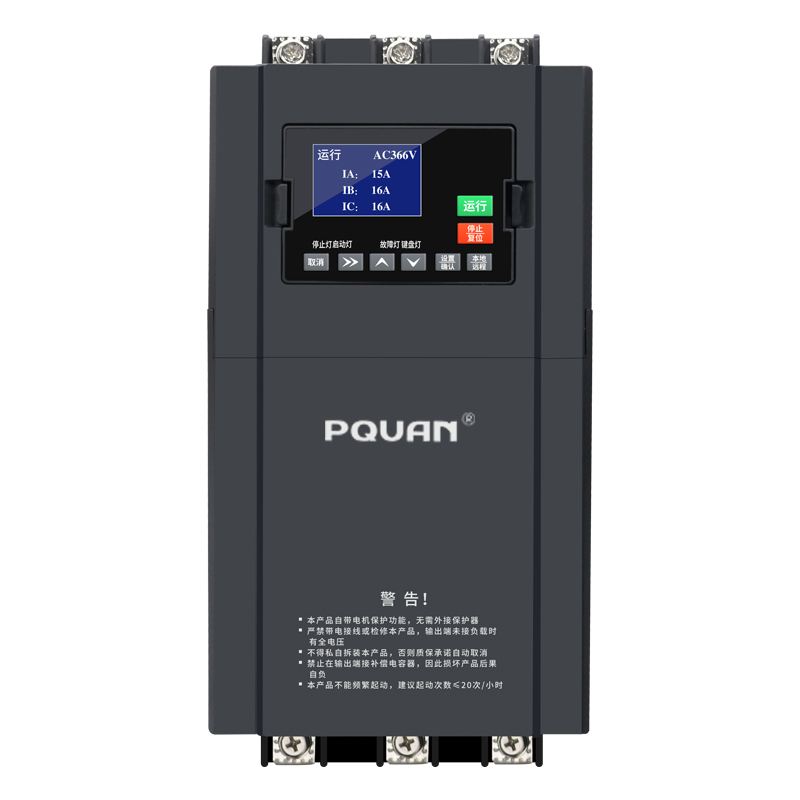

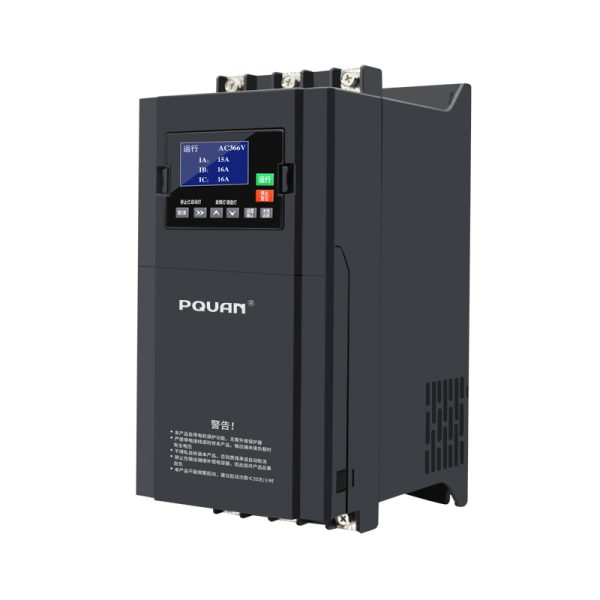

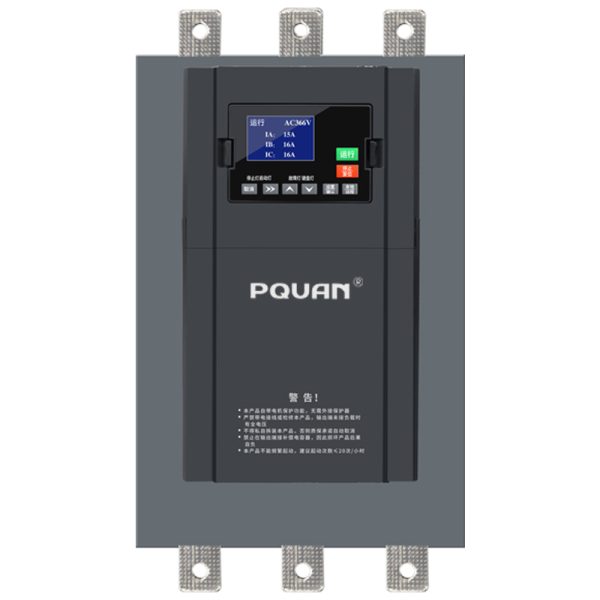

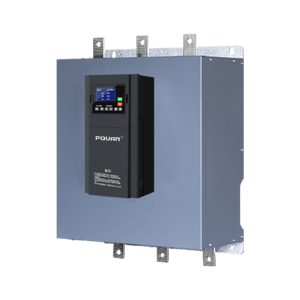

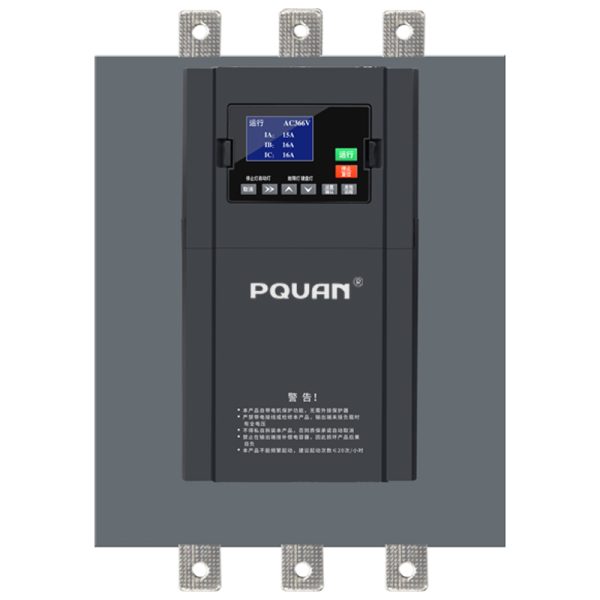

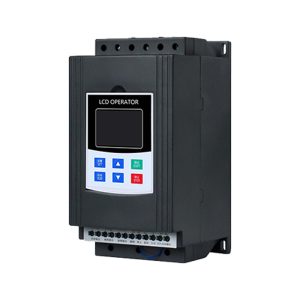

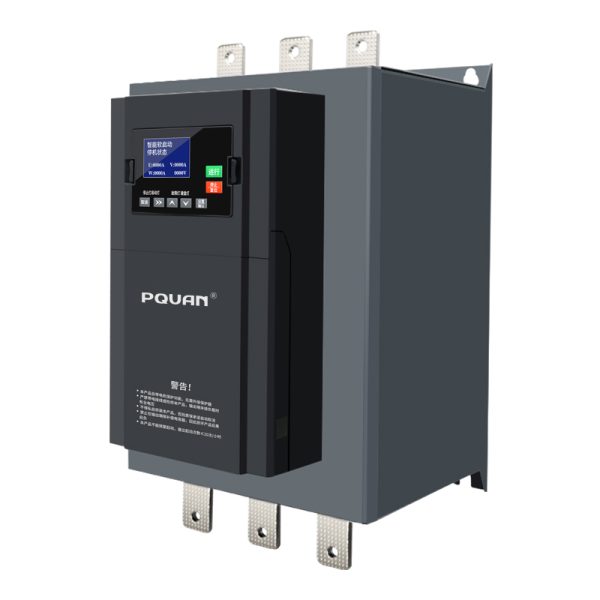

▌Online integrated Soft Starter Advanced Features:

• Smooth Start, No Inrush Current, Protecting Motors and Mechanical Equipment

• Constant Current Start, with Current Closed-Loop Control for Precise Control of Starting Current

• Reduced Voltage Fluctuations, Improved Power Grid Quality

• Simple Structure, Easy Installation and Maintenance

▌Online integrated Soft Starter Characteristics:

• Intuitive Display:
  Features a large LCD screen that displays feedback in multiple languages and tracks motor condition.

• Advanced Control:
  Offers advanced start and stop control functions with intuitive programming.

• Comprehensive Monitoring:
  Provides extensive performance monitoring and error records, including real-time metering display and 99 event logs with time-stamped operation and performance details.

• Enhanced Performance:
  Compared to bypass soft starters with external AC contactors, this series offers a 3x performance improvement, 2.6x better heat dissipation, 25% increased safety, and 20% improved energy efficiency. It boasts a lifespan exceeding 100,000 cycles.

• Remote Control:
  A remote-mounted operation keypad can be easily installed on the front of a control panel, facilitating centralized control of multiple soft starters in a single cabinet.

• Plug-in Terminal Blocks:
  Easy installation and maintenance with plug-in control terminal blocks. Simply remove and reinsert the terminal blocks after connecting the wires.

▌Protection Function:
Phase Loss Protection:
When any one of the three phases is open-circuited, the protection action time is less than 1 minute.
Phase Imbalance Protection:
When the three-phase imbalance K1 or K2 is greater than 10%, the protection action time is less than 10 minutes.
Over current Protection:
When the motor is stalled, the protector operates with a delay of (±1s).
Over voltage Protection:
When the power supply voltage Ue > 120%, the protection action time is less than 1 second.
Under voltage Protection:
When the power supply voltage is (60%-75%) Ue, the protection action time is less than 60 seconds.
Reset Function:
Manual reset via the stop button.
Over temperature Protection:
When the soft starter operates at an excessive temperature, the soft starter will automatically shut down and report a soft start overheat fault.

▌Application Range:

• Fluid Handling (Pumps & Fans):
  Used in water treatment, HVAC, and industrial ventilation to minimize mechanical stress and improve energy efficiency during startup.

• Material Transport (Conveyors & Belt Drives):
  Ensures gradual motor speed increase, reducing equipment wear and enhancing operational efficiency.

• Compression Systems (Compressors):
  Reduces inrush current and mechanical stress in air conditioning, refrigeration, and industrial compressor applications.

• Mixing & Agitation (Mixers & Agitators):
  Provides smooth, controlled startups in food processing, chemical facilities, and wastewater treatment, minimizing vibration and improving efficiency.

• Size Reduction (Crushers & Mills):
  Used in mining, cement, and aggregate processing to decrease mechanical stress and enhance energy efficiency.

▌Environmental requirements:
If the altitude exceeds 1000 meters, the capacity should be reduced accordingly. For every 100 meters increase above 1000 meters, the current should be reduced by 0.5%; The relative humidity should not exceed 95% when the ambient temperature is between -10 ℃ and+40 ℃; No condensation, no flammable and explosive gases, no conductive dust, in a well ventilated indoor environment
